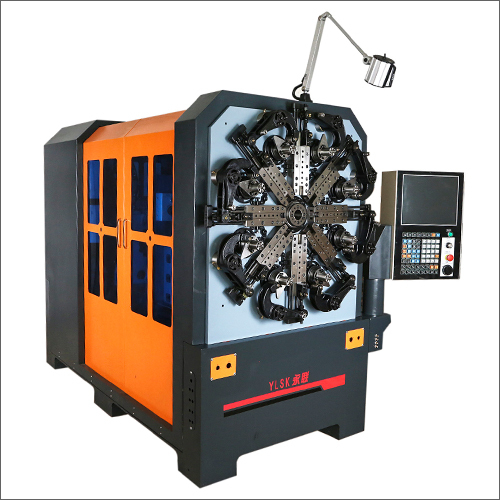

CNC Spring Forming Machine

We are offering here the CNC Spring Forming Machine that is used in the manufacturing of various types of springs. The spring making machines have been designed to work or function in a very special way. They are easy to operate. Spring forming is done using a spring former or CNC spring former machine. It is an automatic CNC way of producing springs of different types without having to put in physical efforts. The offered CNC Spring Forming Machine is manufactured in various specifications and designs as per the need.

Universal Camless Spring Forming Machine

Price 2100001.00 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Automatic
Yes

Axial Choice
8 Axes (Optional 10 Axes)

Bar Feeder
Other, Integrated Automatic Bar Feeder

Capacity
Wire Diameter 0.3-2.0 mm

Color
Other, White & Blue

Computerized
Yes

Dimension (L*W*H)
1400x850x1600 mm Millimeter (mm)

Feature
Other, Camless, Multi-Axis Control, High Precision

General Use
Industrial

Material
Other

Motor
Other, High-precision Servo Motor

PLC Control
Other, Mitsubishi/Delta (Optional)

Power Consumption
4.5 kW

Power Source
Electric

Product Type
YLSK-1020 Universal Camless Spring Forming Machine

Rigidity
Other, High Structural Rigidity

Spindle Speed
Adjustable, Max 4000 rpm

Table Size
Standard Configuration

Type
Other, Automatic Spring Forming Machine

Voltage
380V, 50Hz

Warranty
Yes

Weight (kg)
850 Kilograms (kg)

YLSK-1020 Universal Cam less Spring Machine allows easy programming, precise & stable wire feeding mechanism. Twelve axis synchronous operation, Divided into Eight slides axis, Mandrel (Quill) axis, Wire feeder and Coiling Spinner (optional) axis. Equipped with Taiwan computer control and Japanese imported servo motors. Product Description Wire feeding system is vertically mounted back side of the machine, 2 groups of wire feeding rollers gives feeding accuracy up to 0.01mm. Features: noise free, high synchronization accuracy. YLSK-1020/1028 Universal Cam less Spring Machine The coiling device is mounted on slide. Axis Position, Wire Length, Production Speed & Quantity of production are all displayed on the screen. Online programming and debugging is convenient. Suitable for special shaped spring, Torsion Spring, Extension Spring and many more special designs can produce.

Know more

Wire Rotation CNC Spring Forming Machine

Wire Rotation CNC Spring Forming Machine

Price 2800000 INR/ Unit

Get a Price/Quote

MOQ : 1 , , Unit

Automatic
Yes

Axial Choice
3~5 Axes

Bar Feeder
Other, Included

Capacity
0.2-2.5 mm (Wire Diameter)

Color
Other, White and Blue

Computerized
Yes

Dimension (L*W*H)
1500 mm x 900 mm x 1600 mm

Feature
Other, Wire Rotation, High Precision, Multi-Function

General Use
Industrial

Material
Other, Alloy Steel, Carbon Steel, Stainless Steel

Motor
Other, Servo Motor

PLC Control
Other, Available

Power Consumption
5 kW

Power Source
Electric

Product Type
Spring Forming Machine

Rigidity
High

Spindle Speed
Adjustable, up to 3000 rpm

Table Size
Standard

Type
Other, CNC Spring Forming Machine

Voltage
380V / 50Hz

Weight (kg)
1200 kg

We are instrumental in trading and supplying to our valuable customers excellent quality 2000 Max Storage CNC Spring Forming Machine. It is widely appreciated in the market for its attributes such as high tensile strength, dimensional accuracy and corrosion resistance.

Know more

CNC Camless Spring Forming Machine

Price 6500001 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Automatic
Yes

Dimension (L*W*H)
2800x2200x2200 mm Millimeter (mm)

General Use
Industrial

Material
Other, Mild Steel

Power Source
Electric

Product Type
YLSK-1250 CNC Camless Spring Forming Machine

Voltage
380 V Volt (v)

Warranty
Yes

Weight (kg)
3500 Kilograms (kg)

Know more

CNC Camless Spring Forming Machine

Price 3500001 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Automatic
Yes

Dimension (L*W*H)
1500X1300X1900 mm Millimeter (mm)

General Use
Industrial

Material
Other, Mild Steel

Power Source
Electric

Product Type
YLSK-1140 CNC Camless Spring Forming Machine

Voltage
380 Volt (v)

Warranty
Yes

Weight (kg)
1000 Kg Kilograms (kg)
