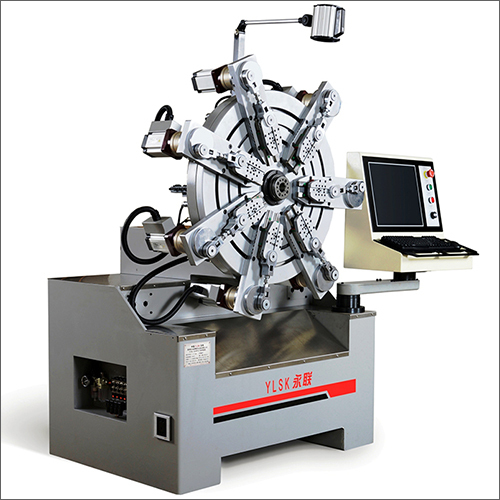

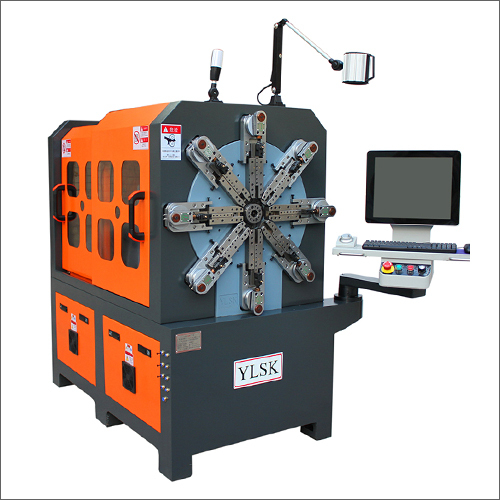

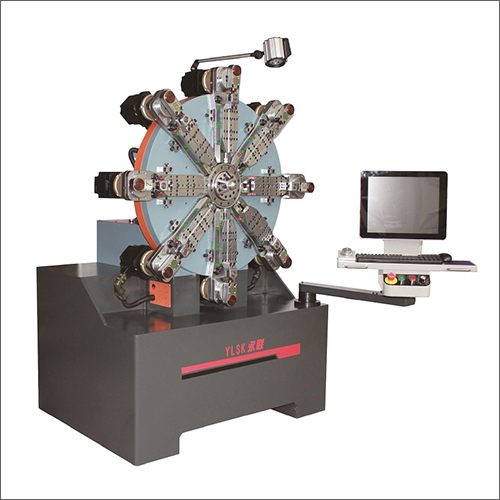

5.5 Wire Feed Universal Camless CNC Spring Forming Machine

Name: 5.5 Wire Feed Universal Camless CNC Spring Forming Machine
Brand: ARSWAN
Price: 2100000 INR
Availability: InStock

Price 2100000 INR/ Unit

Get a Price/Quote

MOQ : 1 , , Unit

5.5 Wire Feed Universal Camless CNC Spring Forming Machine Specification

Product Type
Camless Spring Machine

General Use
Industrial

Computerized
No

Automatic
Yes

PLC Control
Yes

Power Source
Electric

Voltage
220-440 Volt (v)

Motor
AC Motor

Warranty
1 Year

5.5 Wire Feed Universal Camless CNC Spring Forming Machine Trade Information

Minimum Order Quantity
1 , , Unit

Payment Terms
Cash Advance (CA)

Supply Ability
100 Units Per Month

Delivery Time
30 Days

Main Domestic Market
All India

About 5.5 Wire Feed Universal Camless CNC Spring Forming Machine

We are one of the well known companies active in providing wide assortment of 5.5 Wire Feed Universal Camless CNC Spring Forming Machine. Designed and developed by using superior quality raw material and latest machinery, it is made in compliance with international quality standards. It is precisely engineered and consumes less power. Also, it is extremely admirable by our customers for its high performance and robust construction. Available in diverse specifications, this 5.5 Wire Feed Universal Camless CNC Spring Forming Machine is provided to clients within specified time frame.

Specification

Automation Grade	Automatic
Brand	YLSK
Voltage	380 V
Machine Weight	3500 Kg
Frequency	50-60 Hz
Power Source	Electric
Dimension	2400X2000X1900 mm
Model Name/Number	YLSK-1240
Phase	Three Phase
Servo motor of Coiling Spinner (Optional)	1 Kw
Servo Motor of Wire Rotation (Kw)	2.7 Kw
Servo Motor of Quill (Z-axis)	1 Kw
Servo Motor of Cam (Kw)	8X1.2 Kw
Servo Motor of Wire Feed (Kw)	5.5 Kw
Program Storage	999 Max
Axis Count	12 Axis

Camless Spring Forming Technology

This machine employs advanced camless technology, which offers greater flexibility in wire movement and spring forming. Manufacturers benefit from the precision and adaptability, enabling the production of various spring shapes without the need to adjust cams. The straightforward PLC control system allows for efficient operations, reducing manual intervention and setup time in high-volume industrial environments.

Industrial Efficiency and Ease of Use

Equipped with automatic features and a reliable AC motor, the 5.5 Wire Feed Spring Forming Machine streamlines the production process. Its PLC control ensures easy operation and monitoring, even for complex wire patterns. The machine is engineered for durability and consistent operation, making it ideal for large-scale manufacturing, supplying, and exporting applications in the Indian market.

FAQ's of 5.5 Wire Feed Universal Camless CNC Spring Forming Machine:

Q: How does the camless design benefit spring forming operations?

A: The camless mechanism allows for more flexible wire movement and facilitates rapid production changes. This means you can produce different spring shapes and sizes without spending time on mechanical cam adjustments, thus increasing efficiency and versatility in industrial workflows.

Q: What is the process for operating this spring forming machine?

A: The machine is operated via a PLC control system. Once the wire is loaded and parameters are set, the machine automatically feeds and shapes the wire into the desired spring form. Regular supervision and maintenance ensure optimal performance and output quality.

Q: When should routine maintenance be performed on this machine?

A: It is advisable to conduct routine maintenance checks every few weeks, or as specified in the manufacturer's manual. This includes inspecting moving parts, lubricating mechanisms, and ensuring all electrical connections are secure to maximize lifespan and minimize downtime.

Q: Where can I install and operate the 5.5 Wire Feed Spring Forming Machine?

A: This machine is suitable for installation in industrial manufacturing facilities, such as factories involved in spring production. It is distributed, supplied, and supported across India, making it accessible for both large and medium-sized manufacturing units.

Q: What is the general use of this CNC spring forming machine?

A: It is primarily used in industrial settings for the mass production of springs of various shapes and sizes. Its design is optimized for use by dealers, exporters, suppliers, and traders involved in high-volume spring manufacturing and export.

Q: How does the absence of computerization impact its operation?

A: Though not computerized, the PLC control system ensures the machine remains user-friendly and precise. Operators benefit from reliable automation without the need for complex programming, leading to consistent, high-quality production cycles.

Q: What are the key benefits of using the 5.5 Wire Feed Universal Camless CNC Spring Forming Machine?

A: Key benefits include high efficiency, flexible production due to camless technology, automatic operation, and reliable performance powered by a robust AC motor. Its 1-year warranty and wide availability in India add further value for industrial manufacturers.
